How to Measure Your Patio for Furniture

Furniture that looks right in a showroom can overwhelm a small patio or look lost on a large deck. Proper measurement before shopping prevents expensive returns and disappointment. This guide covers everything from basic dimensions to traffic clearances to help you choose furniture that fits your space perfectly.

Tools You Will Need

Basic measurements require only a tape measure. Larger spaces or complex layouts benefit from additional tools.

The Stanley FatMax 25-Foot Tape Measure handles most patio measurements with its 11-foot standout (blade that extends without drooping). The wide 1.25-inch blade is readable from across a deck. For decks over 25 feet, reposition and add measurements.

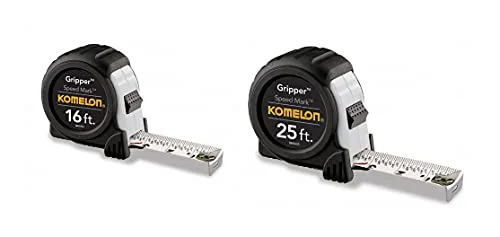

For budget-conscious buyers, the Komelon Speed Mark Gripper Combo Pack provides two tape measures (16ft and 25ft) in one purchase. Having a second tape helps with two-person measurements and marking both ends of long distances.

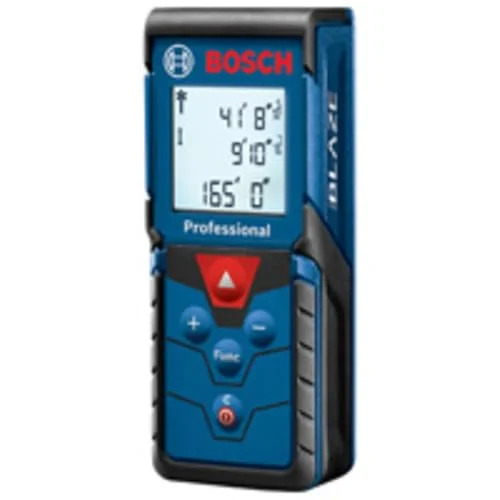

For large properties or precise planning, the BOSCH Blaze Laser Measure instantly calculates distance, area, and volume up to 165 feet. Point, click, done — no stretching tape across large spaces.

Step 1: Measure the Overall Space

Start with the complete usable area before accounting for obstacles.

For Rectangular Patios/Decks

Measure length and width at the longest/widest points. Record in feet and inches (e.g., 14’6” x 12’3”). Calculate square footage: length x width. A 14’6” x 12’3” patio is approximately 178 square feet.

For Irregular Shapes

Break the space into rectangles. Measure each rectangle separately. Add square footages together for total usable space. For curved edges, estimate with straight-line approximations.

For Multiple Levels

Measure each level separately. Note step heights and transitions. Furniture typically stays on one level, so measure the primary seating area most carefully.

Step 2: Map Fixed Elements

Fixed elements reduce usable furniture space. Measure and note:

Doors and doorways — width of door swing, and clearance needed (minimum 36” for comfortable passage)

Steps and transitions — location, width, and landing depth

Built-in features — planters, fire pits, hot tubs, built-in grills, railings

Utility items — electrical outlets, hose bibs, AC units, gas lines

Permanent shade — pergola posts, awning brackets, tree trunks

Draw a rough sketch and mark these elements with dimensions. This becomes your constraint map.

Step 3: Identify Traffic Zones

Furniture cannot block movement through the space. Map these paths:

Primary Traffic Lanes

Routes from doors to stairs, grill to house, gate to patio. These need 36-48” clear width minimum. High-traffic paths benefit from 48-60” width.

Secondary Traffic Lanes

Routes around furniture groupings. Minimum 24” between furniture pieces for walking past. 30-36” is more comfortable.

Dead Ends Are Fine

Not every area needs a walkthrough. Corners and alcoves can accommodate furniture without through-traffic.

Step 4: Understand Furniture Dimensions

Furniture listings provide dimensions — learn what they mean for your space.

Standard Outdoor Furniture Sizes

Dining chairs: 18-22” wide x 20-24” deep x 32-36” tall. Allow 24” per chair around a table.

Lounge chairs: 26-32” wide x 60-78” long (reclined). Some extend 6’+ when fully reclined.

Sofas: 72-96” wide x 30-38” deep. Sectionals can exceed 120” in either direction.

Dining tables (round): 36” (2-person), 42-48” (4-person), 54-60” (6-person), 72”+ (8+ person)

Dining tables (rectangular): 48” (4-person), 60-72” (6-person), 84-96” (8-person)

Coffee tables: 36-48” long x 18-24” wide typically

Side tables: 14-18” diameter or square

Umbrellas: 7-9 foot diameter common. Measure canopy spread, not just pole position.

Reading Furniture Dimensions

Listings show W x D x H (width x depth x height). Width is side-to-side. Depth is front-to-back (toward/away from you when seated). Height is floor to top.

Some listings show L x W x H. Length is typically the longer horizontal dimension.

Step 5: Apply Clearance Rules

Clearances ensure furniture is usable, not just fittable.

Dining Table Clearances

From table edge to wall/obstacle: Minimum 36” to pull out chair and stand. 42-48” is comfortable. 48-60” allows passage behind seated diners.

Between table and seating: 12-18” from table edge to chair front when seated

Total dining footprint: Table dimensions + 60-72” on each side with chairs = total space needed

Example: A 60” round table needs approximately 60” + 72” + 72” = 16+ feet in each direction for comfortable seating and passage.

Seating Arrangement Clearances

Conversation distance: 4-8 feet between facing seats for comfortable conversation. Under 4 feet feels cramped; over 10 feet feels disconnected.

Coffee table distance: 14-18” from sofa/chair front to coffee table edge. Arm’s reach without leaning.

Between seating groups: 48”+ separates distinct conversation areas

Lounge Chair Clearances

Fully reclined length: Measure or verify reclined position length. Many lounge chairs extend 18-24” beyond upright position.

Side clearance: 24” between adjacent loungers for getting in/out

Fire Pit Clearances

From seating: 36-48” from fire pit edge to nearest seating. Close enough for warmth, far enough for safety.

From structures: Check local codes. Often 10-15 feet minimum from buildings, overhangs, and fences.

Step 6: Create a Scaled Floor Plan

Visual planning prevents expensive mistakes.

Paper Method

Graph paper: 1 square = 1 foot. Draw patio outline. Mark fixed elements. Cut out paper furniture to scale. Move pieces around to test arrangements.

Digital Method

RoomSketcher and similar apps let you draw your space, add furniture from libraries, and view in 2D or 3D. Free tiers handle basic planning; paid versions add 3D visualization and accurate measurements.

Key Benefits

• See scale relationships before purchasing
• Test multiple arrangements
• Verify clearances visually
• Share plans with family for input
• Save configurations to compare options

Step 7: Account for Real-World Factors

Measurements on paper differ from lived experience.

Sun and Shade Patterns

Track where shade falls at different times. A seating area perfect in morning may bake in afternoon sun. Mark shade patterns on your plan.

Wind Exposure

Identify wind corridors. Position heavier furniture in exposed areas. Plan umbrella placement accounting for wind direction.

Views

Note desirable views (garden, pool, landscape) and undesirable views (neighbor’s AC, trash cans). Orient furniture toward preferred views.

Access for Delivery

Measure gates, side yards, and door widths. Large sectionals may not fit through standard 36” doors. Verify delivery path clearances before ordering oversized pieces.

Common Patio Sizes and Furniture Suggestions

Small Patio (Under 100 sq ft)

Typically 8x12 or 10x10 feet. Fits bistro set (2 chairs + small table) or small conversation set (2 chairs + side table). Avoid deep sofas and large tables that overwhelm the space.

Medium Patio (100-200 sq ft)

Typically 10x15 to 12x16 feet. Fits 4-person dining set OR small sectional with coffee table. Rarely both — choose primary function.

Large Patio (200-400 sq ft)

Typically 14x20 to 20x20 feet. Fits dining for 6 AND conversation seating. Room for dedicated zones with visual separation.

Extra Large Patio (400+ sq ft)

Fits multiple distinct areas: dining, lounging, fire pit zone. Consider treating as separate rooms with their own furniture groupings.

FAQ

How much space do I need around a dining table?

Allow 36” minimum from table edge to any wall or obstacle for chair pullout. For traffic passage behind seated diners, increase to 48-60”. A 48” round table needs approximately 12 feet of total space including chairs and clearance.

Can I use indoor furniture dimensions as a guide?

Generally yes — most indoor clearance rules apply outdoors. The key difference is outdoor spaces often have more irregular shapes and need weather considerations. Also, outdoor furniture tends to run larger than indoor equivalents.

What if my patio has an odd shape?

Focus on usable zones. An L-shaped patio might have a dining zone in one leg and seating in the other. Triangular corners often work best for planters or single accent chairs rather than groupings.

How do I account for an umbrella?

Add umbrella diameter to your space plan. A 9-foot umbrella needs clearance from structures, and the canopy extends 4.5 feet from the pole in all directions. Position so the umbrella shades seating during peak sun, which may not be directly above the table.

Should I measure furniture at the store?

Yes. Bring your tape measure. Showroom measurements often differ slightly from listings, and sitting in furniture reveals depth and height realities that numbers alone cannot convey.

Measurement Checklist

Before shopping, confirm you have:

• Overall patio dimensions (length x width)
• Square footage calculated
• Fixed elements mapped with dimensions
• Traffic paths identified with clearances
• Primary furniture zone dimensions
• Scaled floor plan (paper or digital)
• Shade patterns noted
• Delivery path clearances verified

The Bottom Line

Proper measurement prevents furniture that fits on paper but fails in practice. Start with overall dimensions, map fixed elements and traffic paths, understand furniture sizes and required clearances, and create a scaled plan before purchasing. The extra hour of measuring saves days of returns, exchanges, and frustration.

---
